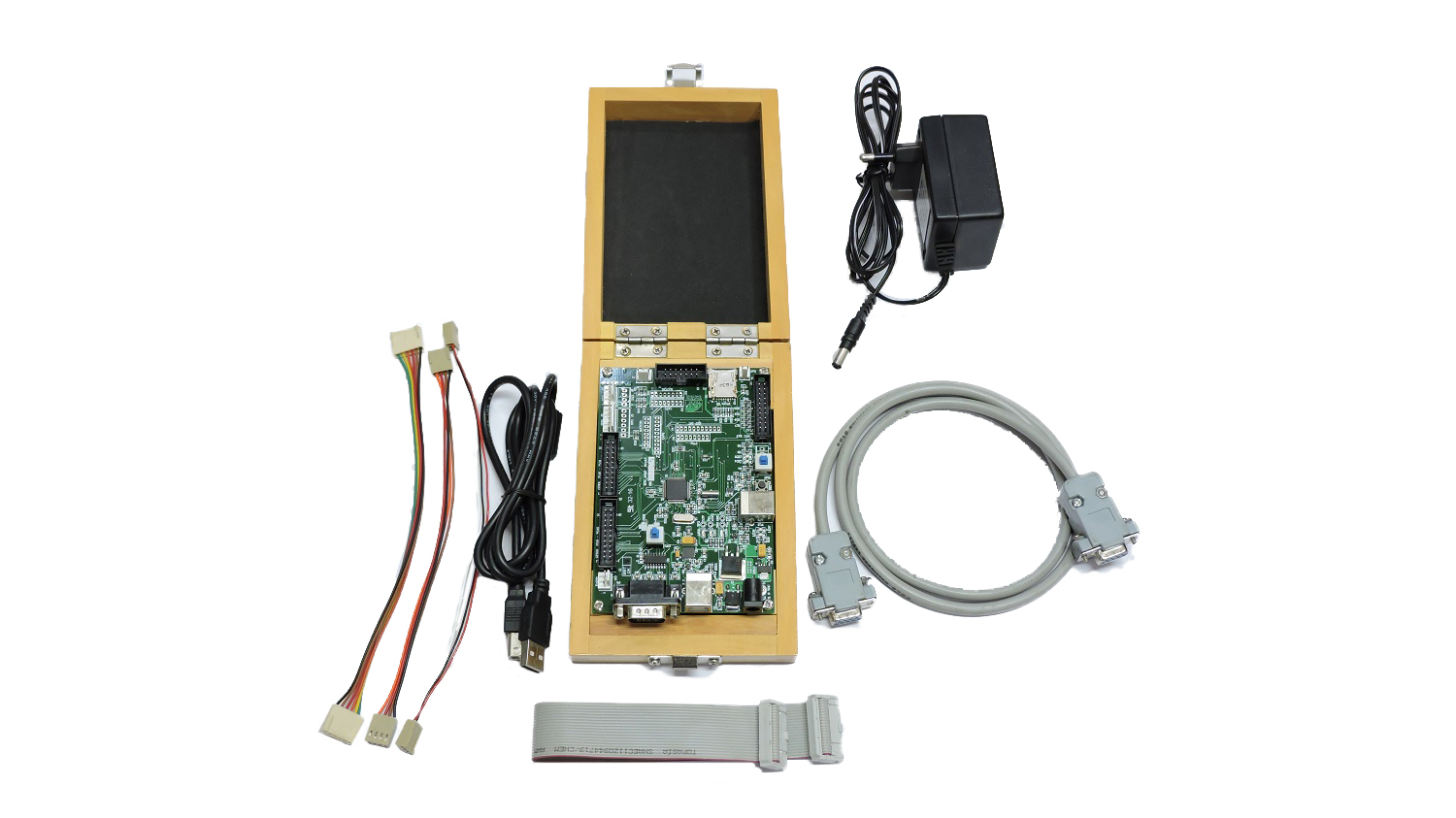

1. Educational Practice Board for ARM7 LPC2148

• LPC2148 microcontroller
• 60Mhz. Max operating speed
• 512kB of on-chip flash memory
• 32KB of on-chip SRAM + 8KB RAM for USB
• 9-volt only operation with supplied AC adapter
• On board Power-On LED indication
• On board Reset Switch with LED indication
• On board Switch for Run/Program mode switching
• Two 20 Pin (10x2 header) Connector for total 32 GPIO lines
• On board USB Connector for UART0 interface with LED indication
• On board DB9 connector for UART0 interface
• On board DPDT switch available for UART0 connector switching between USB and DB9 connector.
• On board USB for Flashing
• On board 3 pin header for UART1 interface
• On board MMC/SD card connector available
• On board 14 pin (7x2 header) connector for 12 channels On-Chip ADC interface
• On board 3 pin header for 2 channel On-Chip ADC interface
• On board 6 pin relimate connector for SPI0 Interface
• On board 6 pin relimate connector for SSP Interface
• On board 4 pin relimate connector for I2C0 Interface
• On board 4 pin relimate connector for I2C1 Interface
• On board JTAG emulation connector (10x2 pins)
• On board 2 pin relimate connector facility available for Onchip DAC output
• On board 2 pin relimate connector facility available for RTC battery interface
• On board test points/ Connector facility available for CAP0 and CAP1 peripherals.
• On board test points/ Connector facility available for Match0 and Match1 peripherals.
• On board test points/ Connector facility available for PWM interface.
• On board test points/ Connector facility available for External Interface.
• Test points for Power supply signals

2. Educational Practice Board for DSP6748

Processor

• TMS320C6748 – Fixed/ Floating Point Digital Signal Processor
• DSP with up to 456 MHz performance.
• On board 14 Pin (2x7 Pin) JTAG emulation connector
• Boot mode selection switch

Memory

• On board 256 MB Flash memory
• On board 128 MB DDR2 RAM memory

Data Transfer Interfaces

• On board DB9 connector for UART-1 interface
• On board 3 pin header for UART-2 interface
• On board USB TYPE B Connector for UART-2 interface for Debug Console
• LED indication for USB connection for Debug Console
• On board Reset Switch with LED indication
• On board USB Type A Connector for USB host interface
• On board micro USB Type A Connector for USB OTG interface
• On board RJ45 connector for 10/100 Ethernet interface
• On board I2C based Temperature sensor
• On board I2C based RTC interface with battery backup
• On board SPI based micro SD card interface
• On board provision for SATA connector

Input/Output Interfaces and other Facilities

• On board Power-On LED indication
• On board 4 User LED at GPIO Pin as GPIO Test point
• On board 5 user push buttons for various applications

Special functionality

• Boot mode selection switch
• On board Video in port available
• On board VGA out connector
• On board Provision for composite video out

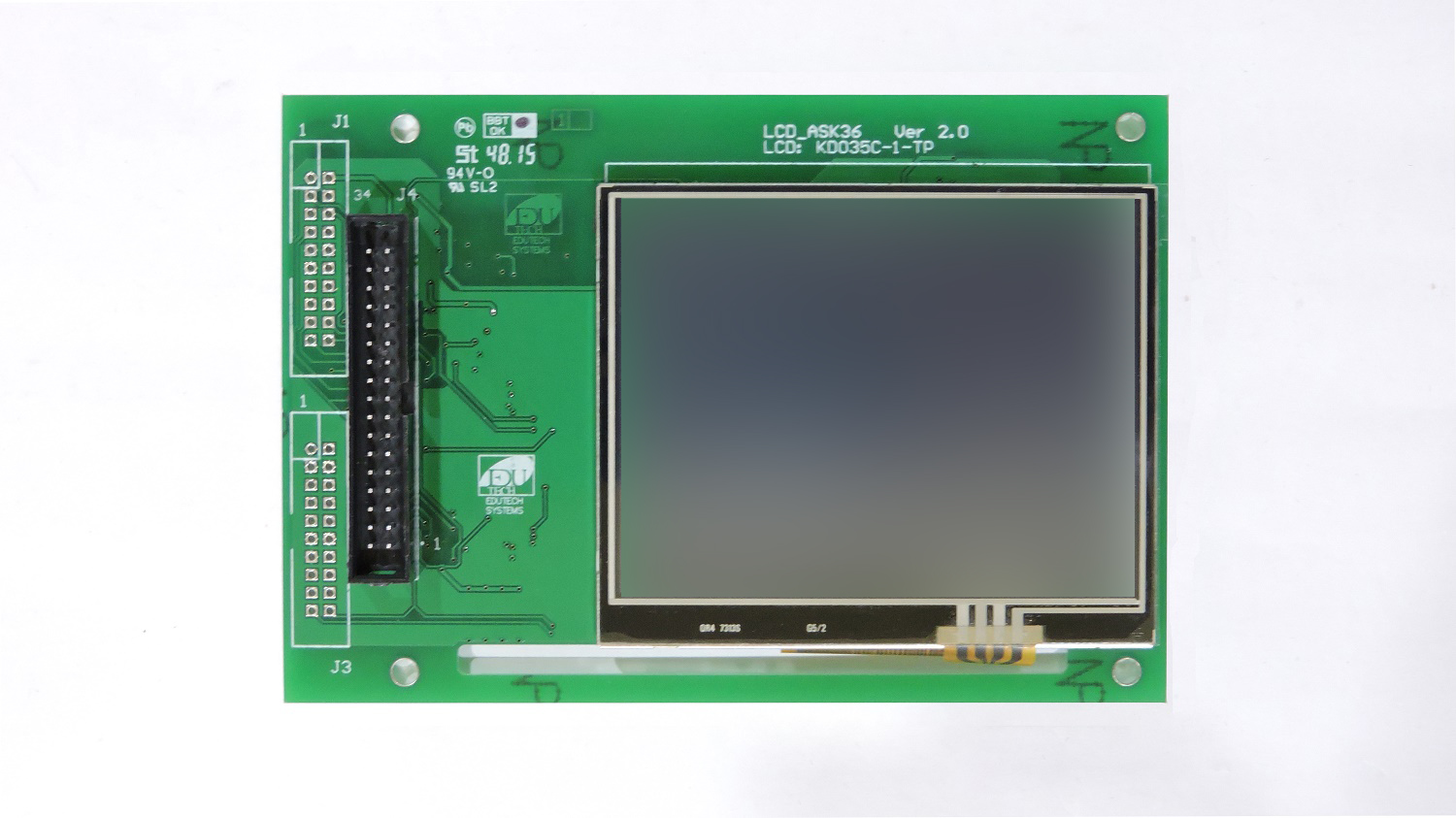

• Provision for Graphics LCD interface
• On board audio jack and speaker (Mic in) interface
• On board audio codec for speaker out
• Provision for CMOS sensor connector to interface CMOS camera
• On board Temperature sensor with interrupt out facility
• On board jumper selection to switch various video out options
• On board LED to indicate power surge
• On board LED to indicate high voltage input
• On board excessive voltage protection circuit with LED indication
• Various test points for various signals
• On board jumper selection to switch UART2 between USB connector and 3 pin connector

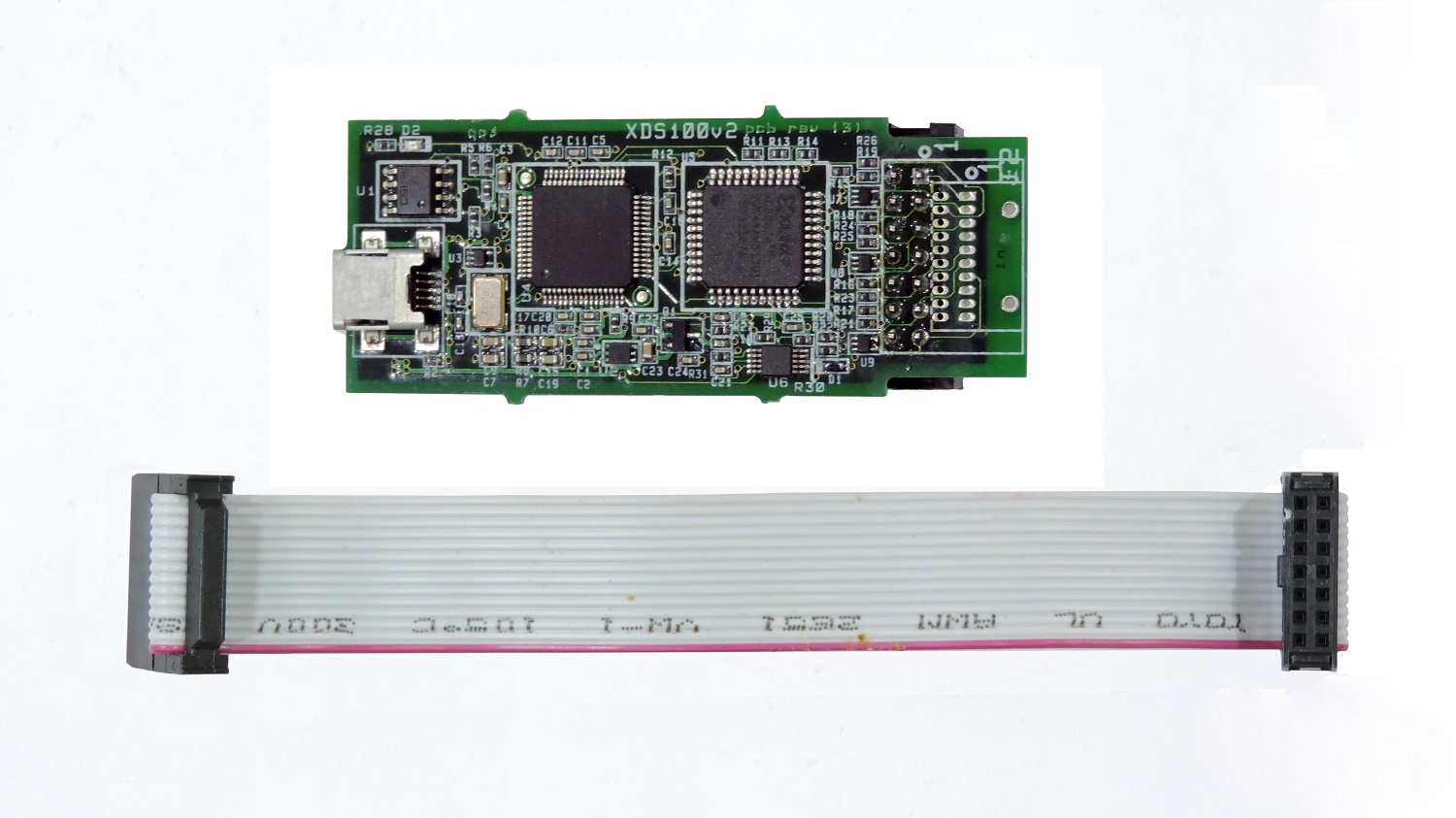

 3. USB Emulator for DSP6748 kit

• Supports Texas Instruments Processors and Microcontrollers with JTAG interface:F28xx,C674x, C64x+,ARM9,C54xx,C55xx,Cortex™ etc.
• Supports Embedded Trace Buffer (ETB) on selected TI devices
• USB Bus Powered
• Supports USB 2.0 (480mbps)
• Debug features (Emulation Connect/Disconnect, Read/Write memory, Read registers, Load program, Run, Halt, Step, Software and Hardware Breakpoint support, Real-Time Mode)
• Compatible with +1.8V or +3.3V JTAG Interfaces.
• Supports targets with 14-pin JTAG Header
• Dimensions: 2.22”L x 1.”W Low Profile
• 14-pin JTAG Header
• Compatible with Code Composer Studio IDE™ from Texas Instruments version v4 and later
• Supports UniFlash™ programming utility from Texas Instruments
• Compatible with Windows XP, Vista,Win7, Wn10 and Linux Operating Systems
• Adaptive clocking
• LED light to indicate active USB connection

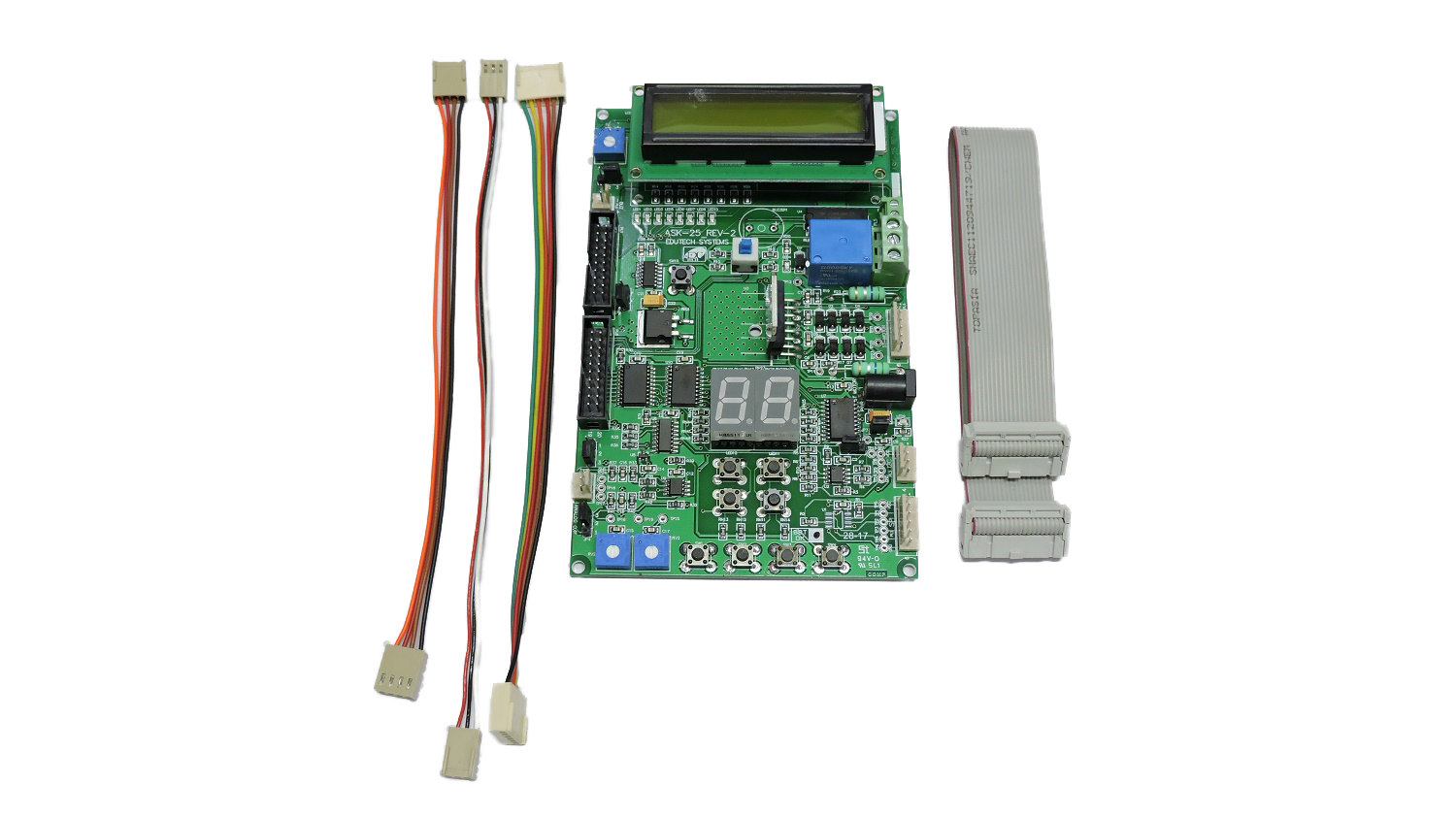

4. All in One general Purpose Board

• The All-in-one GPIO board is specially designed to suit the experimentation of different GPIO devices with the micro controllers
• On board display options includes 8 LED, 16x2 character LCD (Operating in 4-bit or 8-bir mode), 2 digit 7-segment display
• Switches includes 4 general purpose keys to provide digital input to GPIO pins of microcontroller
• 2X2 matrix keyboard
• I2C and SPI based EEPROMs for protocol demonstration experiments
• Stepper motor interface with built-in H-bridge driver IC
• DC motor interface
• 1 Relay output
• Facility to provide 2 channel ADC in put using potentiometer and unity gain amplifier for protection
• On board buzzer to generate various frequencies
• Compatible with different educational practice boards
• Useful resource to learn basic programming techniques to interface basic GPIO components to the controller
• Supplied in wooden box packing

5. GSM Modem with enclosure

• GSM modem with serial communication interface
• Standard RS-232 interface using 9 pin D connector provided with the device for communication
• Controlling through AT commands.
• Modem can be linked to a PC, micro-controller or DSP based embedded system for sending SMS.
• Data circuit asynchronous, transparent and non-transparent up to 14400 bits/s and baud rate of 30 to 115,200 bits/s
• Can be used for curriculum projects involving Pre-stored messaging, Remote home appliance control, Industrial alarming system, Automatic Meter Reading (AMR), Security Systems, Remote Data logging and reporting, Low cost router, Remote monitoring of Vending machines etc.
