TFT/Touch screen Interfacing Kit for EPBM4
Description

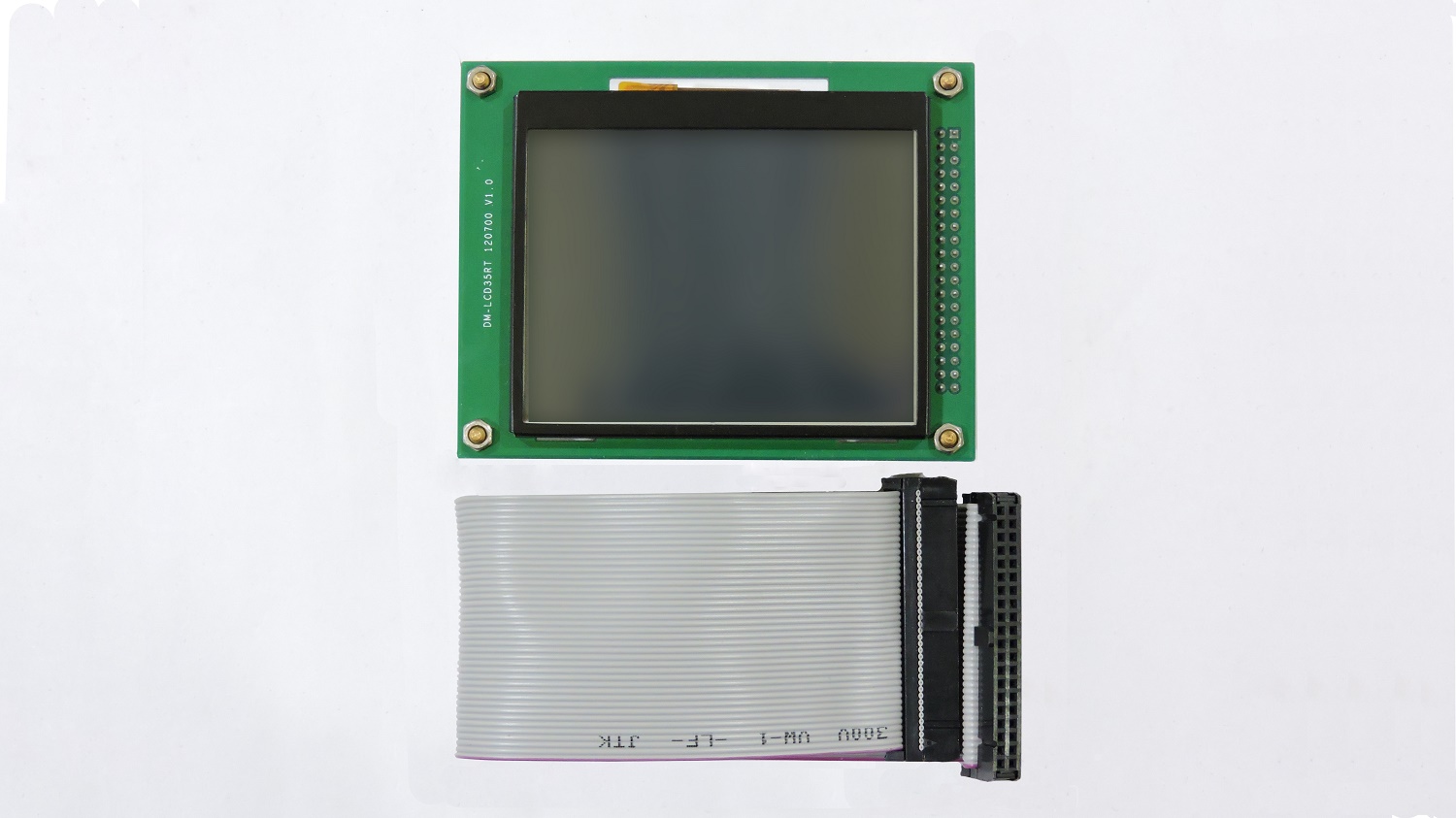

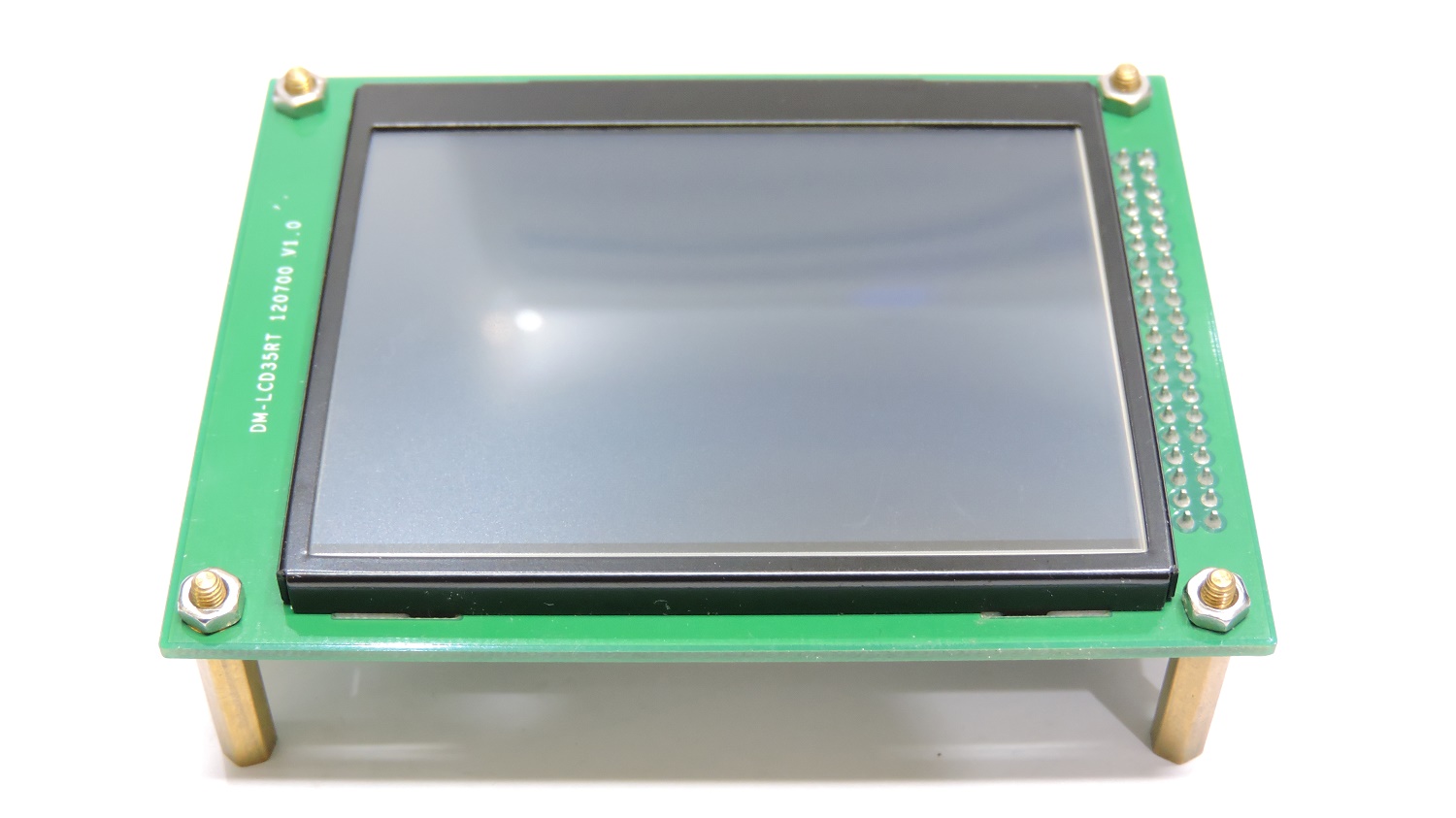

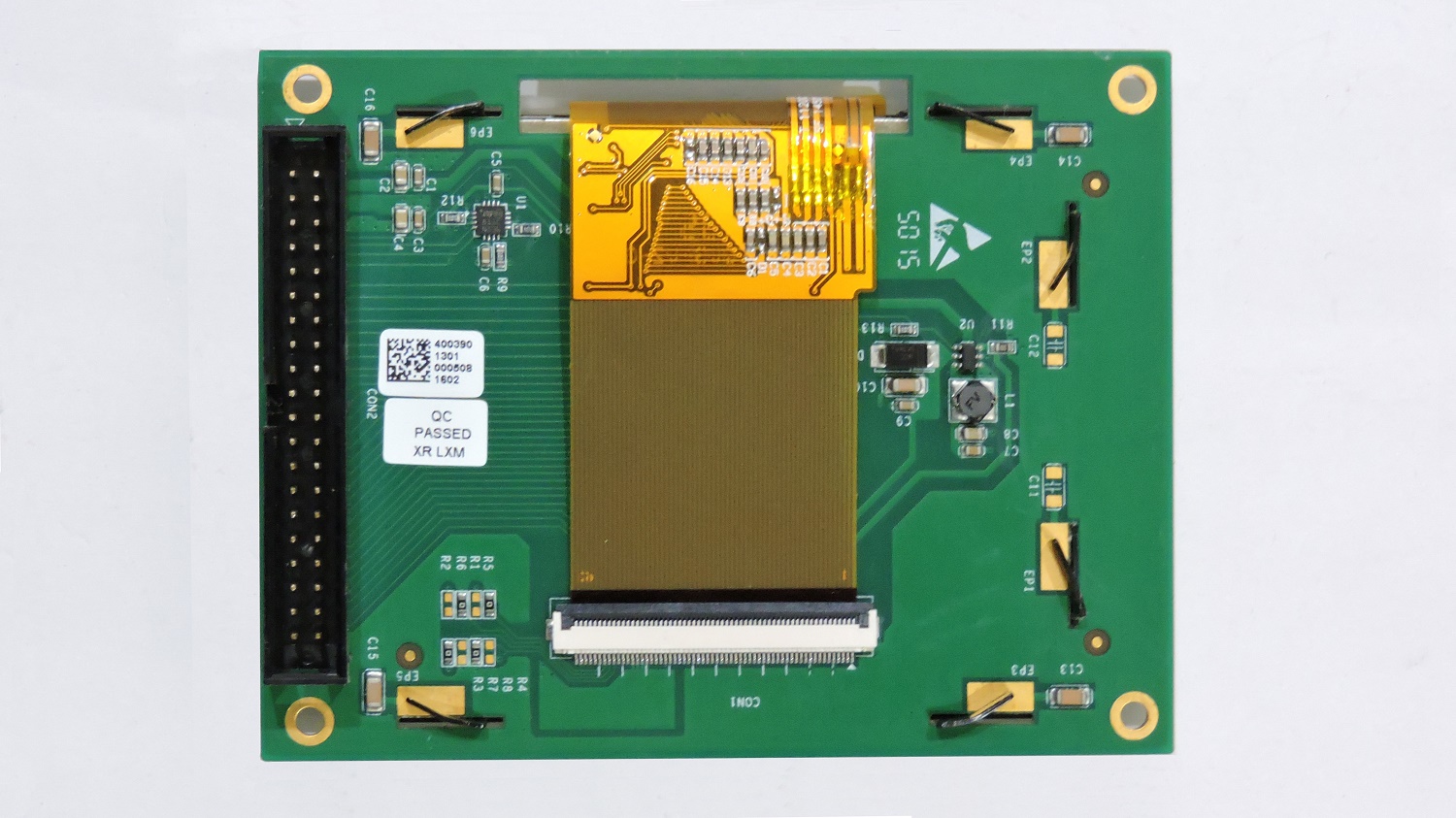

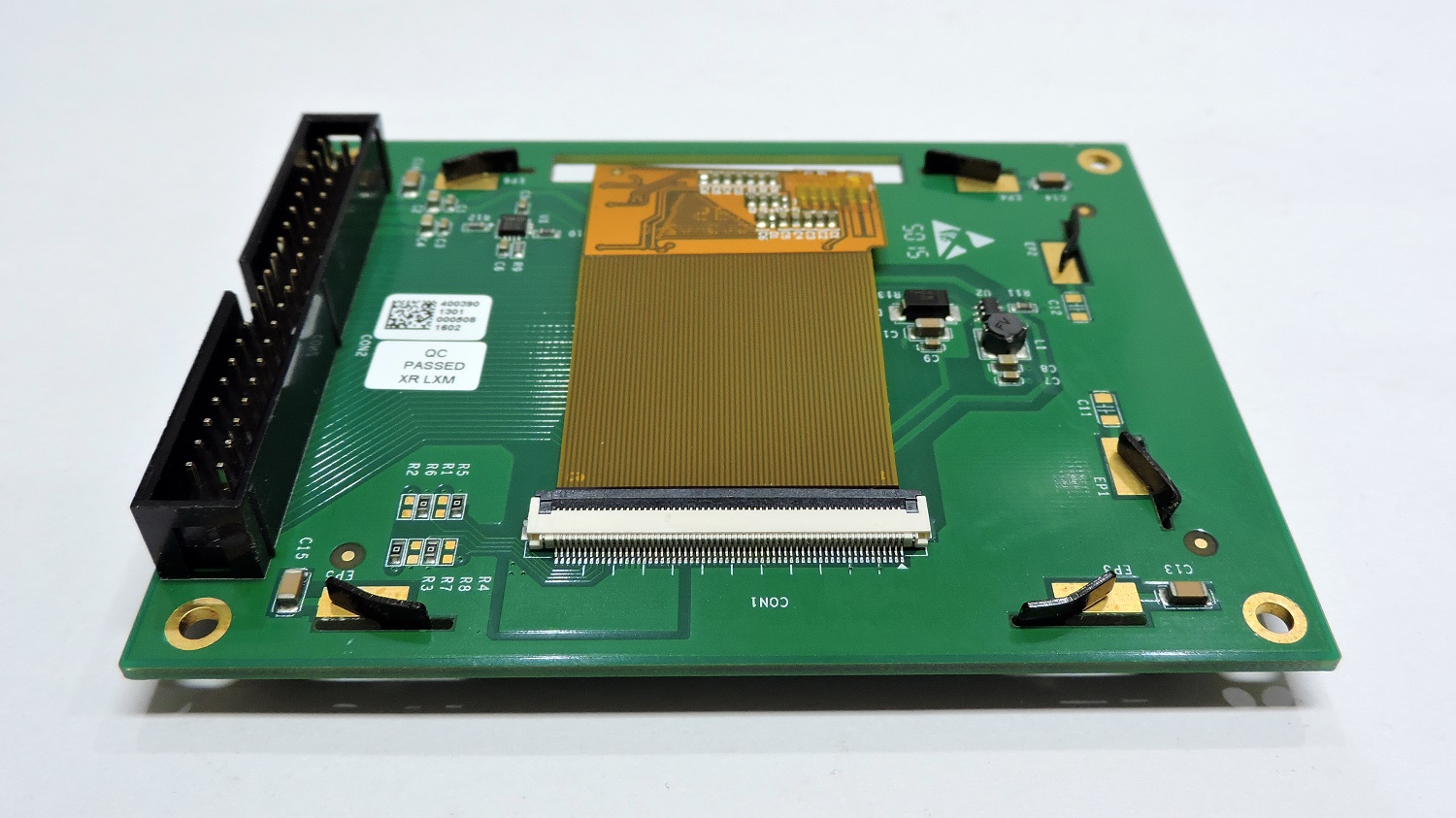

The TFT board for the EPBM4 kit has 3.5inch LCD board with touch screen capability connect to the base board to form a complete system. It includes everything required for beginners and experienced users to get started quickly. Based on the STM32F407VGT6, EPBM4 kit includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro AB connector.
Features
- SSD2119 driving IC
- 320 x 240 display format
- 262K colours
- PWM control back light
- 16bit 8080 parallel system interface
- 4 wire resistive touch screen
