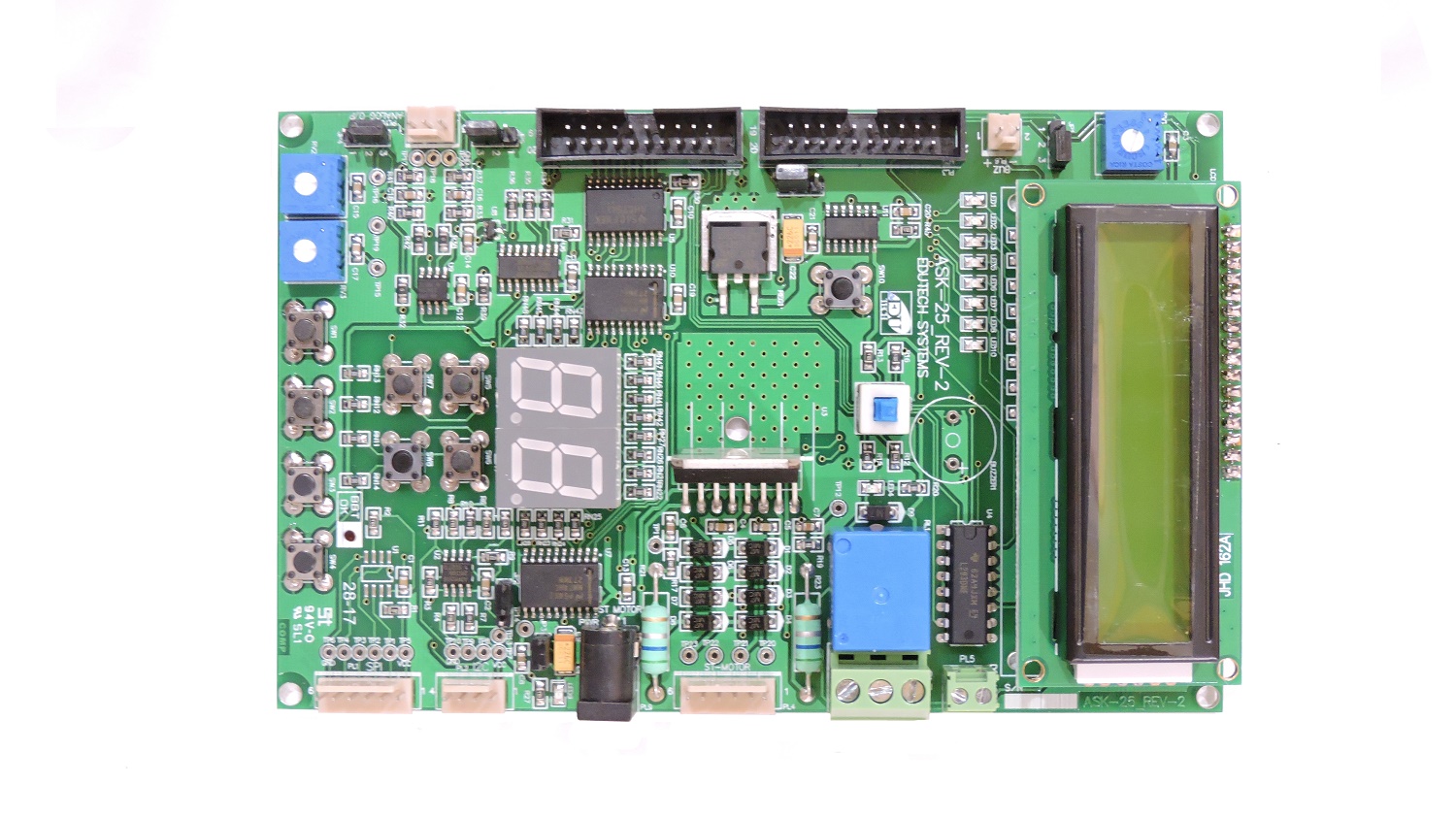

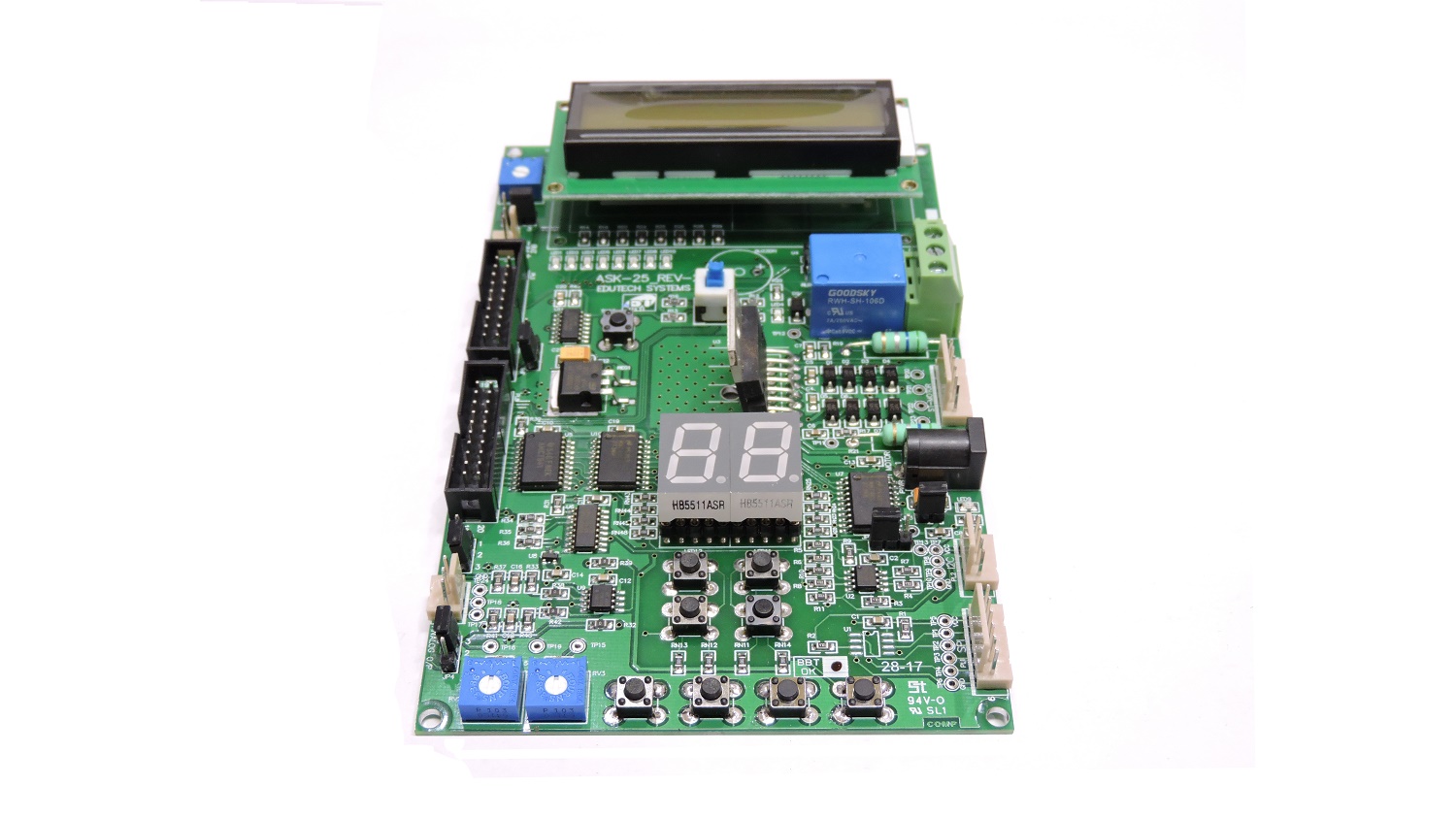

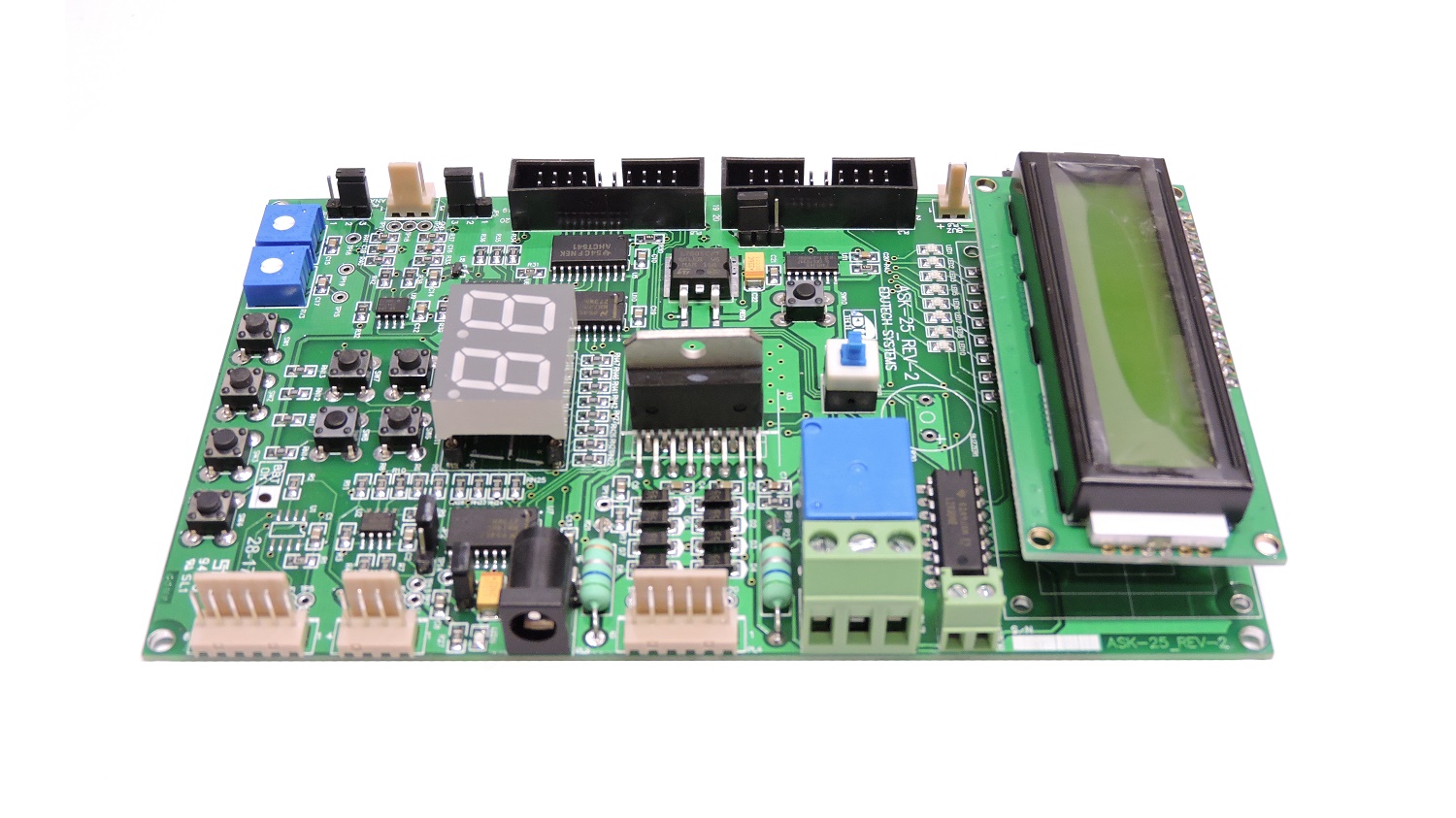

All In One general Purpose Board
Description
The All-in-one General Purpose Board is specially designed to suit the experimentation of different GPIO devices with the micro controllers. The board can be used to study the different I/O devices and its programming techniques. This cost effective board can be used with different target controllers like 8051, PIC, AVR, ARM7, ARM Cortex M3/M4 and ARM9 offered by Edutech.
Features
- The All-in-one GPIO board is specially designed to suit the experimentation of different GPIO devices with the micro controllers
- On board display options includes 8 LED, 16x2 character LCD, 2 digit 7-segment display
- Switches includes 4 general purpose keys and 2X2 matrix keyboard
- I2C and SPI based EEPROMs for protocol demonstration experiments
- Stepper motor and DC Motor interface
- Relay output
- Facility to provide 2 channel ADC in put using potentiometer and unity gain amplifier for protection
- Compatible with different educational practice boards and Arduino Board
- Useful resource to learn basic programming techniques to interface basic GPIO components to the controller
