Educational Practice Board for 8051
Description

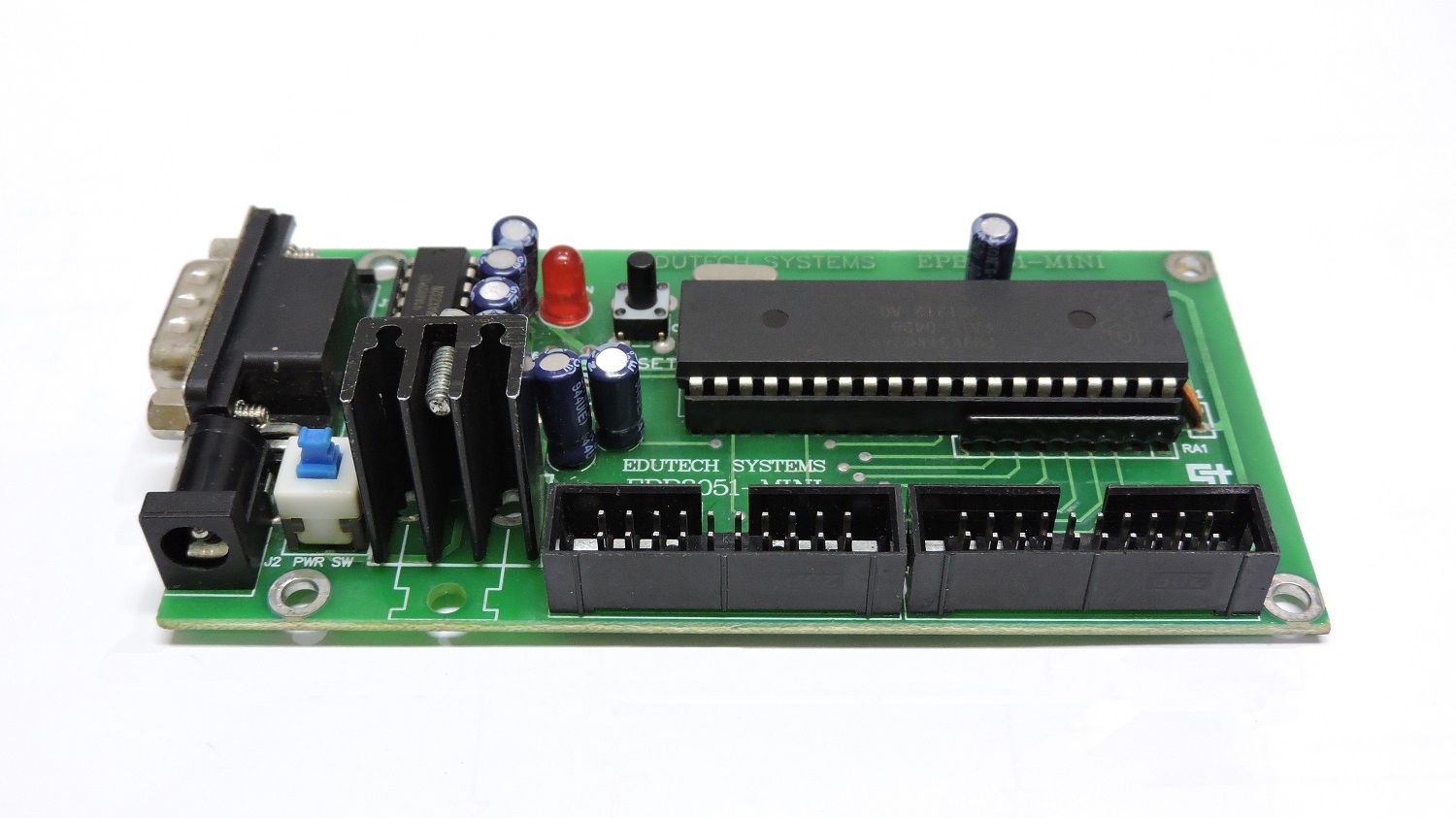

The Educational Practice Board for 89V51RD2 is a very low cost CPU target board for those who want to start up with 8051 and develop application involving variety of interface options. This board is configured around the NXP 89V51RD2 controller. The board comes with the in-system programming/programmer facility which enables the user to down load the programs and test their functionality. All the I/O ports are available on a two number of 20 pin connectors.
Features
- General purpose study card to learn, test and apply 8051.
- On-board In-circuit programming facility eliminates the need of a separate programmer.
- 64 K on chip program memory.
- Availability of all 32 ports for interfacing and application development.
- Low cost & ideal for project development work.
- CDROM with required technical information and programming utilities.
