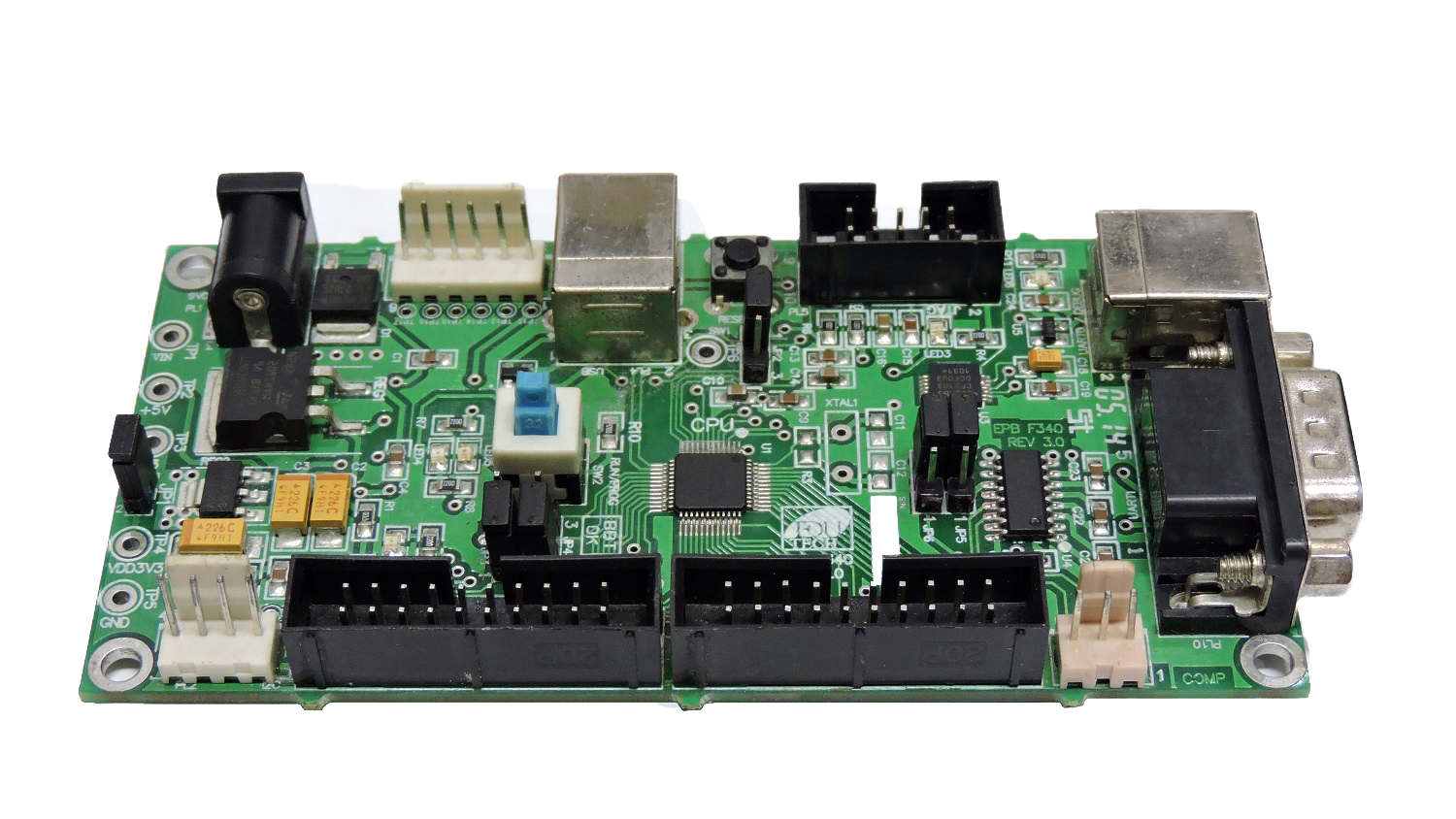

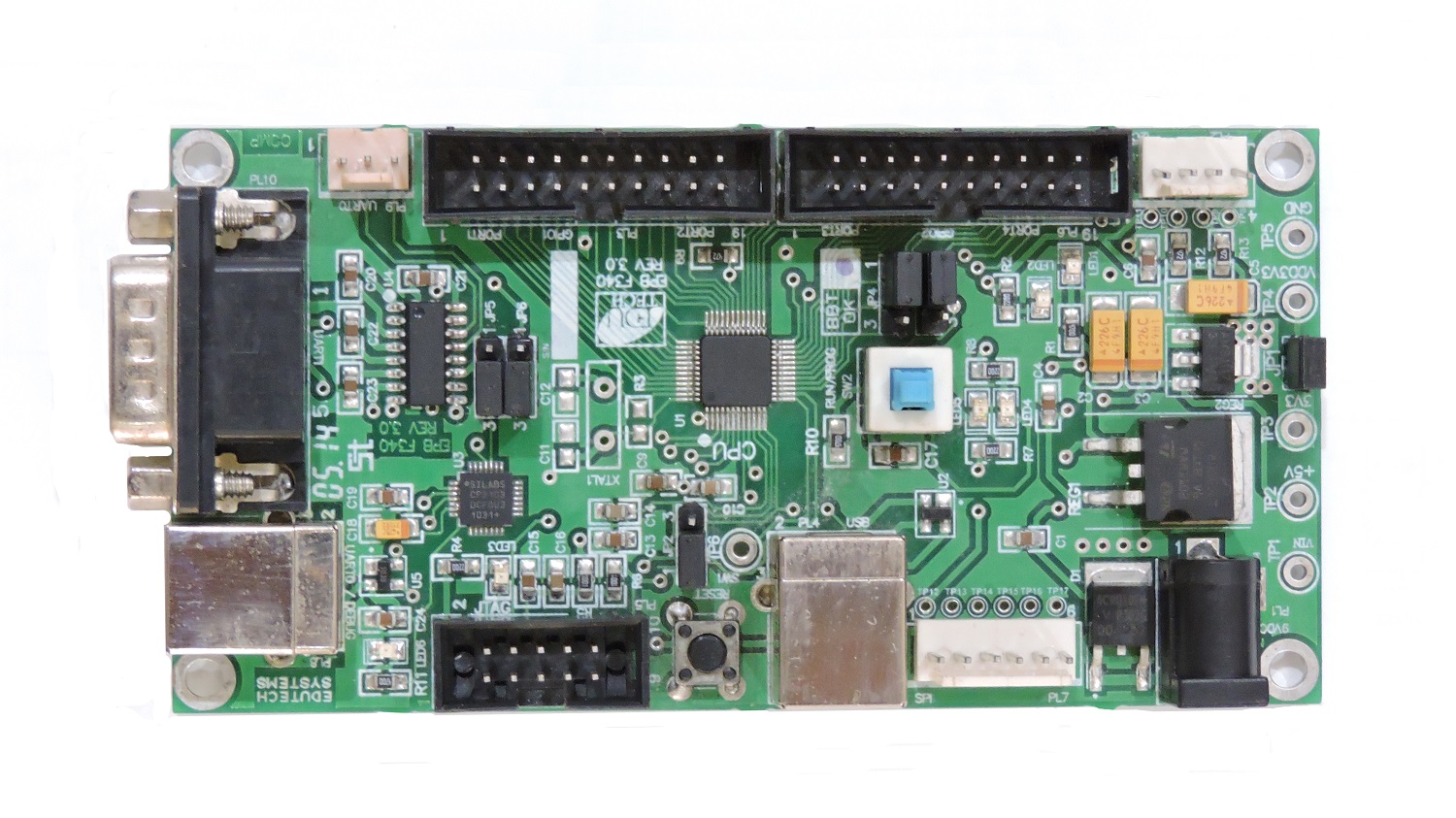

Educational Practice Board for C8051F340
Description
This Educational Practice Board features the C8051F340 CPU from Silicon Lab. This board is designed for the first time learners who are interested to get introduced to the micro controller programming. The board offers two flashing options - USB and JTAG. The controller offers rich features like 10 bit ADC, comparators, USB, JTAG, high speed (upto 48MHz) operation, four 16 bit timers, serial peripherals like UART, SPI, and I2C etc. This board can be interfaced with different interfacing boards and can be used to learn basic micro controller programming techniques.
Features
- C8051F340 micro controller operating at 48 Mhz. Max operating speed
- High-speed pipelined 8051-compatible microcontroller core (up to 48 MIPS)
- In-system, full-speed, non-intrusive debug interface (on-chip)
- On chip Universal Serial Bus (USB) Function Controller
- True 10-bit 200 ksps differential / single-ended ADC with analog multiplexer
- On-chip Voltage Reference and Temperature Sensor
- On-chip Two Analog Voltage Comparators
- Precision internal calibrated 12 MHz internal oscillator and 4x clock multiplier
- Internal low-frequency oscillator for additional power savings
- On-chip 64 kB of on-chip Flash memory
- On-chip 4K Bytes of on-chip RAM
- On Chip Programmable Counter/Timer Array (PCA) with five capture/compare modules and Watchdog Timer function
- On Chip SMBus/I2C serial interfaces
- On Chip Enhanced SPI serial interfaces

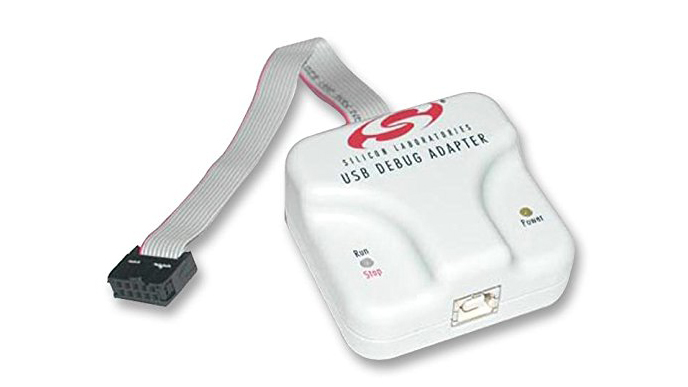

- On board JTAG emulation connector
- On board Reset switch
- On board DB9 connector for UART0 interface
- On board 3 pin header for UART1 interface
- On board Switch for Run/Program mode (Boot Mode Selection)
- On Board 2 20-pin FRC Connector for 32 Port I/O (5 V tolerant)
