Educational Practice Board for ARM7 LPC2148
Description

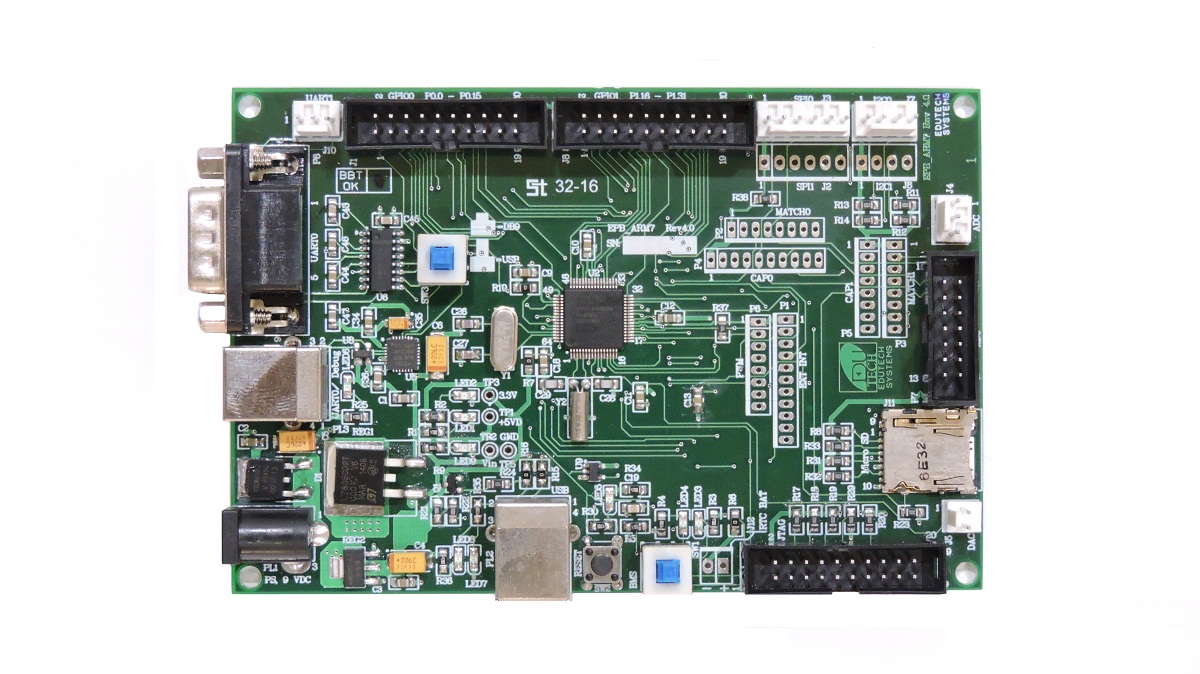

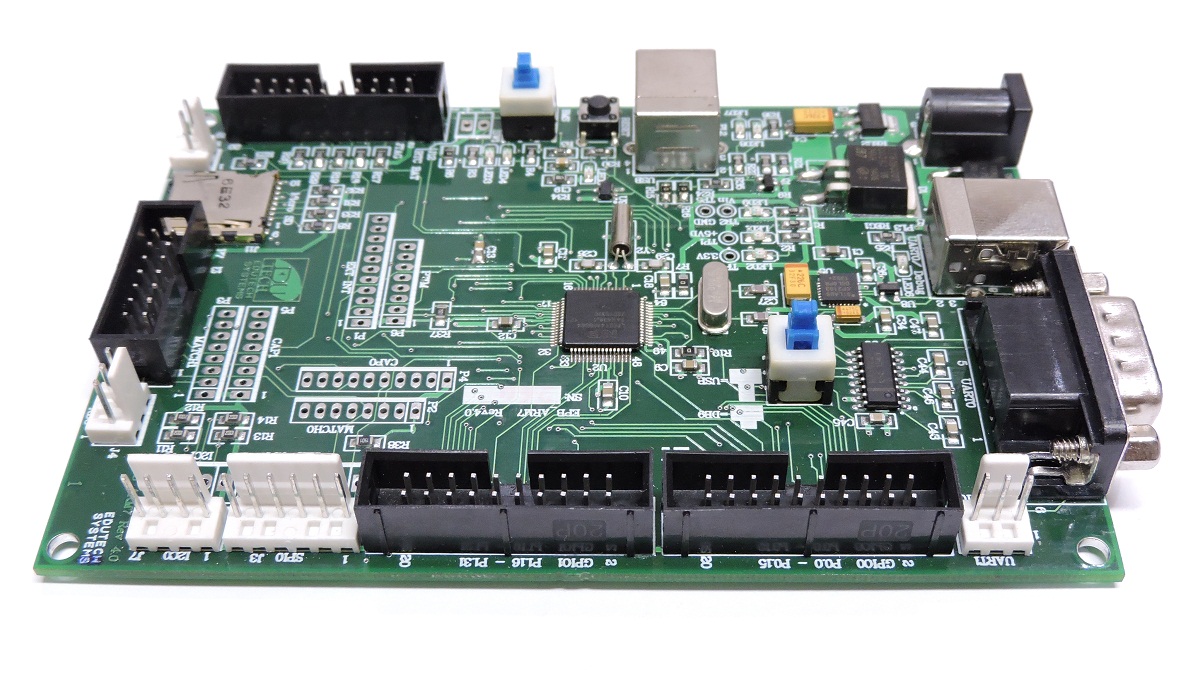

Educational Practice Board for ARM7 focuses the LPC2148 CPU from NXP. This board is designed to study the basic exercises on 32-bit ARM platform. This board unlike the conventional kit allows the user to fully utilize the power and features of the controller and thus construct a true single chip design. The board features on-board JTAG debugger for on-line debugging. This makes the process of learning as well as development fast. All the important signals are made available on separate test points for easy analysis. Specially designed 20-pin connectors enables interfacing of variety of Application Specific Kits to the target board. With this facility, interfacing of different components like LED, 7-segment LED, LD, Matrix Keyboard, Stepper Motor, 320X240 Graphic LCD, RF interface etc can be studied.
Features
- LPC2148 micro controller
- 60Mhz. Max operating speed
- 512kB of on-chip flash memory
- 32KB of on-chip SRAM + 8KB RAM for USB
- 9-volt only operation with supplied AC adapter
- On board Power-On LED indication
- On board Reset Switch with LED indication
- On board Switch for Run/Program mode switching
- Two 20 Pin (10x2 header) Connector for total 32 GPIO lines
- On board USB Connector for UART0 interface with LED indication
- On board DB9 connector for UART0 interface
- On board DPDT switch available for UART0 connector switching between USB and DB9 connector.
- On board USB for Flashing
- On board 3 pin header for UART1 interface
- On board MMC/SD card connector available
- On board 14 pin (7x2 header) connector for 12 channels On-Chip ADC interface
- On board 3 pin header for 2 channel On-Chip ADC interface
- On board 6 pin relimate connector for SPI0 Interface
- On board 6 pin relimate connector for SSP Interface
- On board 4 pin relimate connector for I2C0 Interface
- On board 4 pin relimate connector for I2C1 Interface
- On board JTAG emulation connector (10x2 pins)
- On board 2 pin relimate connector facility available for Onchip DAC output
- On board 2 pin relimate connector facility available for RTC battery interface
- On board test points/ Connector facility available for CAP0 and CAP1 peripherals.
- On board test points/ Connector facility available for Match0 and Match1 peripherals.
- On board test points/ Connector facility available for PWM interface.
- On board test points/ Connector facility available for External Interface.
- Test points for Power supply signals
